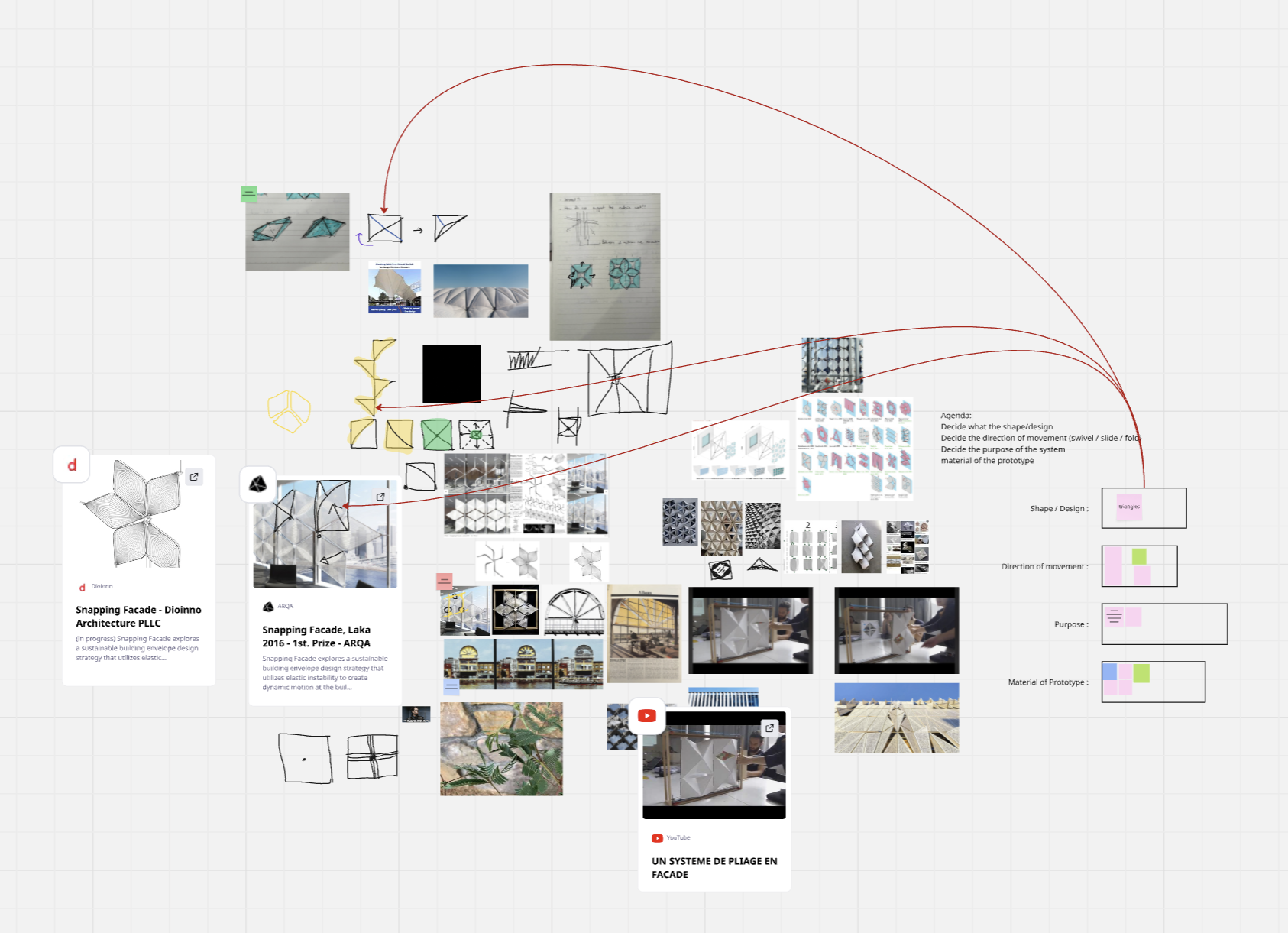

Conceptualisation Mind Map to Determine First Prototype

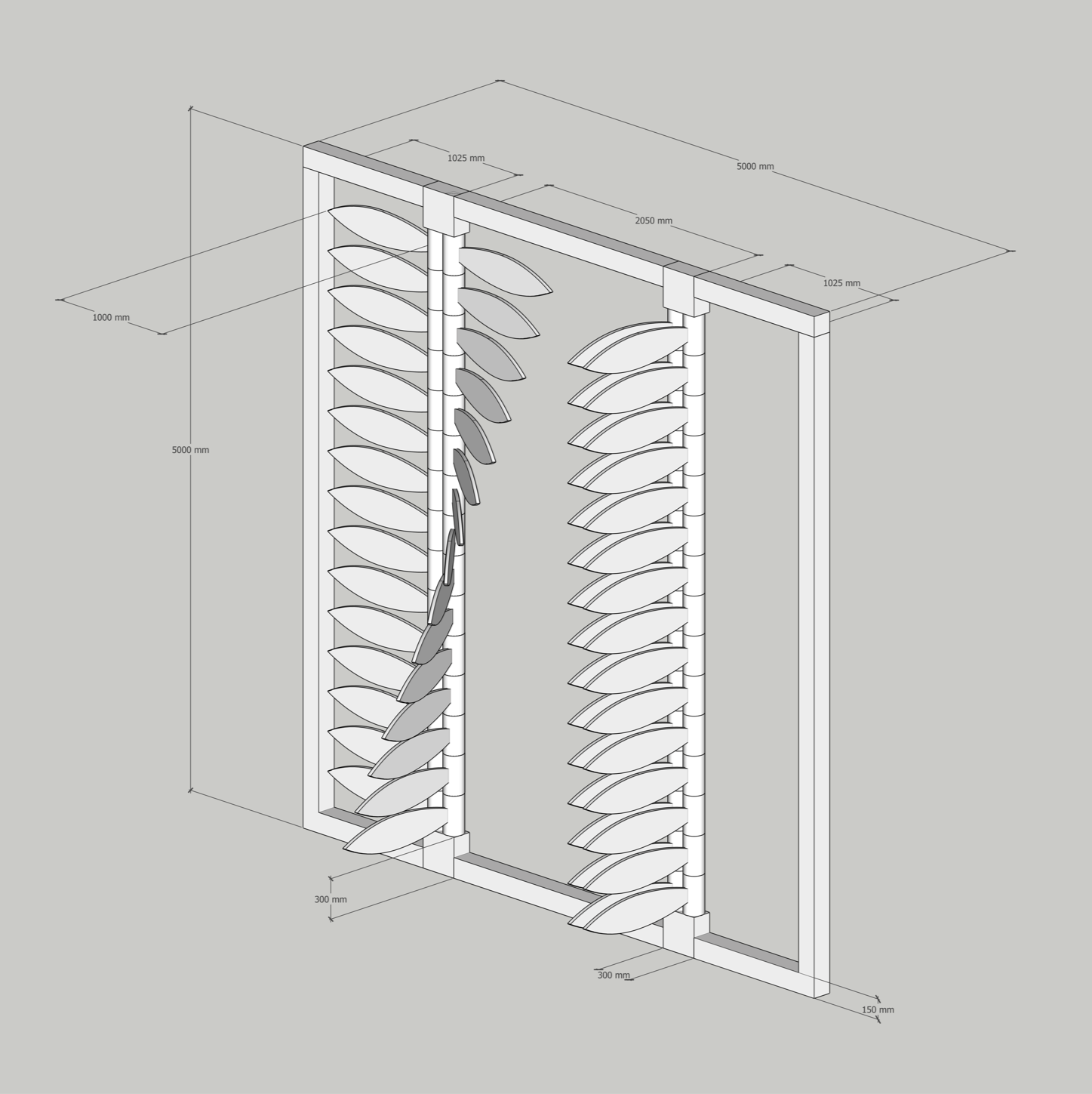

Prototype 2 (oblong mimosa-inspired panels)

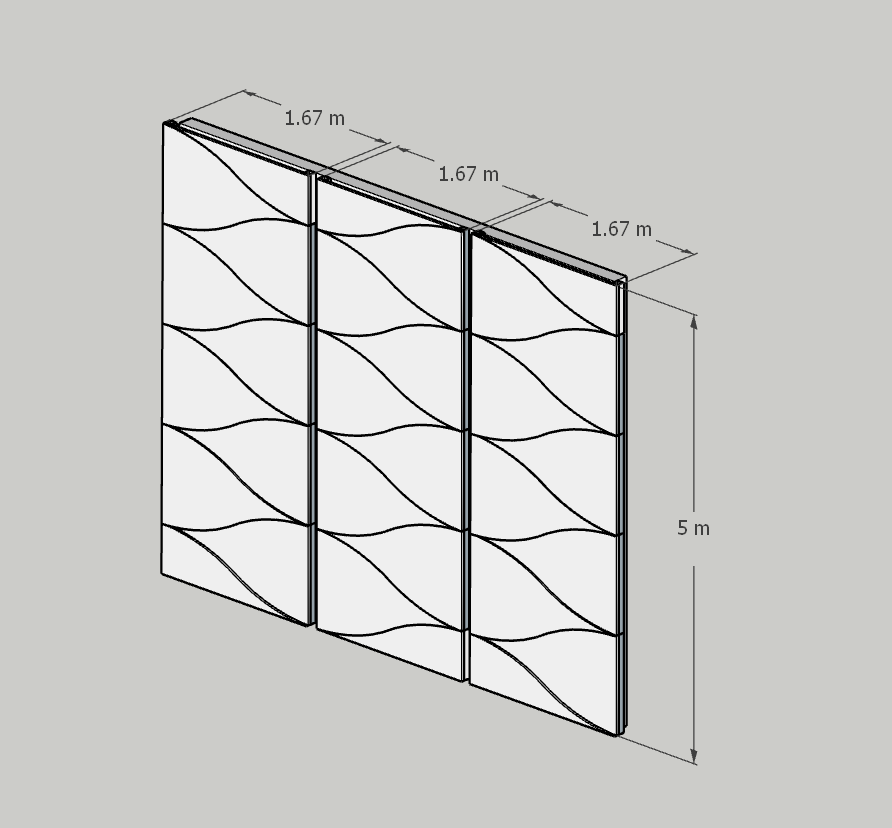

Prototype 3 (greater surface heat protection + easy modular maintainability)

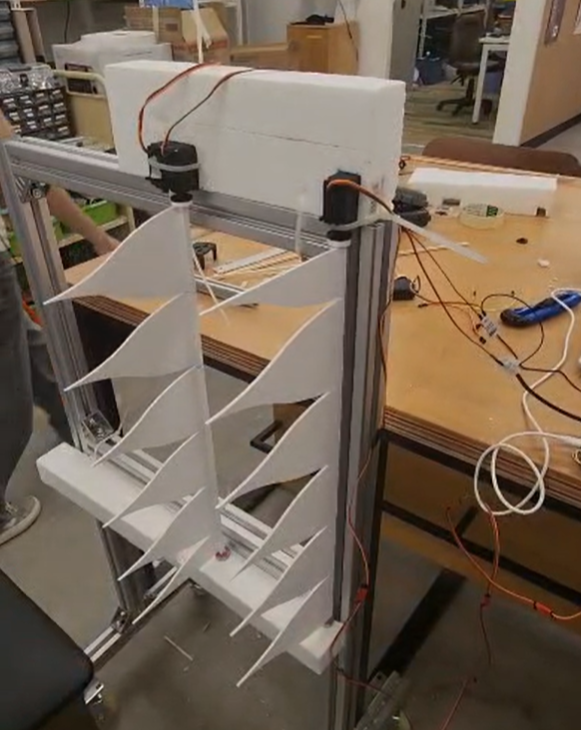

Open Facade When Ambient Temperature is ≤29°C

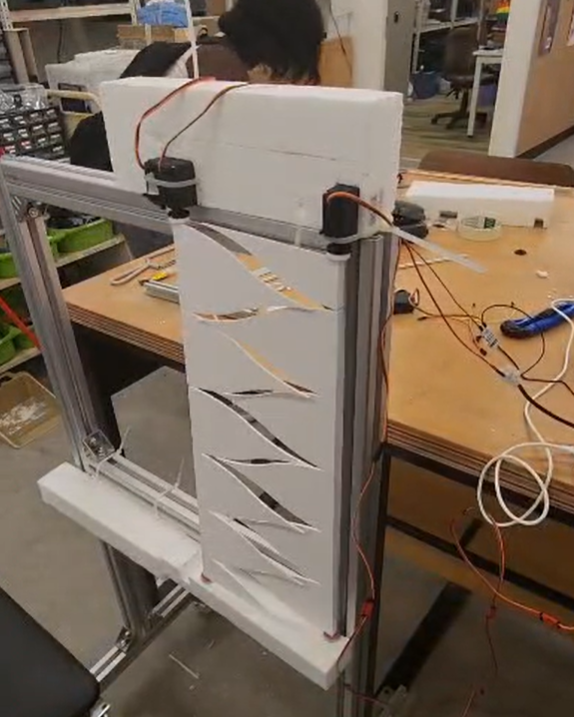

Closed Facade When Ambient Temperature is ≥34°C
Mimosa Adaptive Facade Research Paper (group project)
Description
Brief: Write a research paper on the experimentation of a sustainable adaptive facade system, that is to be affixed to a unitised curtain wall system, for enhanced heat protection from Singapore’s tropical climate using the conference paper format.
Duration
Oct 2025 - Dec 2025
Key Contributions
Co-directed a six-person team on a mimosa-inspired adaptive façade prototype and research paper, acting as lead editor to manage flow and clarity, and earning praise for rigorous analysis from our lecturer, Mr Yio Yang Huat.
Conceptualised a mimosa-inspired adaptive façade system featuring rotating panels that increasingly cover the facade as outdoor temperatures rise.
Collaborated with teammates to deliver an advanced working prototype of one pair of the adaptive facade using the Flow.M5 website coding platform, servo motors, 3D-printed panels, and ball bearings.
Demonstrated Skills
Team leadership
Design research
3D printing for prototyping
